Aguilarite
A valid IMA mineral species
This page is currently not sponsored. Click here to sponsor this page.
About Aguilarite
Formula:
Ag4SeS
Colour:
Bright lead-gray on fresh surfaces
Lustre:
Metallic
Hardness:
2½
Specific Gravity:
7.40 - 7.53
Crystal System:
Monoclinic
Member of:
Name:
Named after Señor P. Aguilar, Superintendent of the San Carlos Mine, Mexico, the type locality.
Isostructural with:
There appear to be two solid solution series in the system: a monoclinic ‘acanthite-like’ series (from Ag2S-Ag2S0.4Se0.6), and an orthorhombic ‘naumannite-like’ series (from Ag2S0.3Se0.7-Ag2Se) (Bindi & Pingitore, 2013; Seryotkin et al., 2015).
Compare 'UM1979-11-S:AgAsAuSe', 'UM1979-12-S:AgAsAuSe', and 'UM1979-13-S:AgAsAuSe'.
Compare 'UM1979-11-S:AgAsAuSe', 'UM1979-12-S:AgAsAuSe', and 'UM1979-13-S:AgAsAuSe'.
Unique Identifiers
Mindat ID:
59
Long-form identifier:
mindat:1:1:59:4
Similar Names
| Aglaurite | A variety of Orthoclase | K(AlSi3O8) |
IMA Classification of Aguilarite
Approved, 'Grandfathered' (first described prior to 1959)
First published:
1891
Classification of Aguilarite
2.BA.55
2 : SULFIDES and SULFOSALTS (sulfides, selenides, tellurides; arsenides, antimonides, bismuthides; sulfarsenites, sulfantimonites, sulfbismuthites, etc.)
B : Metal Sulfides, M: S > 1: 1 (mainly 2: 1)
A : With Cu, Ag, Au
2 : SULFIDES and SULFOSALTS (sulfides, selenides, tellurides; arsenides, antimonides, bismuthides; sulfarsenites, sulfantimonites, sulfbismuthites, etc.)
B : Metal Sulfides, M: S > 1: 1 (mainly 2: 1)
A : With Cu, Ag, Au
2.4.1.3
2 : SULFIDES
4 : AmBnXp, with (m+n):p = 2:1
2 : SULFIDES
4 : AmBnXp, with (m+n):p = 2:1
3.2.4
3 : Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)
2 : Sulphides etc. of Ag
3 : Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)
2 : Sulphides etc. of Ag
Mineral Symbols
As of 2021 there are now IMA–CNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.
| Symbol | Source | Reference |
|---|---|---|
| Agu | IMA–CNMNC | Warr, L.N. (2021). IMA–CNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43 |
Physical Properties of Aguilarite
Metallic
Transparency:
Opaque
Colour:
Bright lead-gray on fresh surfaces
Comment:
Dull iron black after exposure to air.
Streak:
Grey-black
Hardness:
2½ on Mohs scale
Tenacity:
Sectile
Cleavage:
None Observed
Fracture:
Hackly
Density:
7.40 - 7.53 g/cm3 (Measured) 7.65 g/cm3 (Calculated)
Optical Data of Aguilarite
Anisotropism:
very weak
Reflectivity:
| Wavelength | R1 (%) | R2 (%) |
|---|---|---|
| 400nm | 34.8% | 35.1% |
| 420nm | 34.7% | 35.2% |
| 440nm | 34.6% | 35.2% |
| 460nm | 34.7% | 35.3% |
| 480nm | 34.8% | 35.3% |
| 500nm | 34.8% | 35.4% |
| 520nm | 34.6% | 35.6% |
| 540nm | 34.1% | 35.5% |
| 560nm | 33.5% | 35.2% |
| 580nm | 32.8% | 34.6% |
| 600nm | 32.1% | 33.8% |
| 620nm | 31.5% | 33.9% |
| 640nm | 31.0% | 32.4% |
| 660nm | 30.6% | 31.8% |
| 680nm | 30.2% | 31.4% |
| 700nm | 30.0% | 31.0% |
Graph shows reflectance levels at different wavelengths (in nm). Peak reflectance is 35.6%.
R1 shown in black, R2 shown in red
Chemistry of Aguilarite
Mindat Formula:
Ag4SeS
Element Weights:
Elements listed:
Common Impurities:
Cu
Crystallography of Aguilarite
Crystal System:
Monoclinic
Class (H-M):
2/m - Prismatic
Cell Parameters:
a = 4.33 Å, b = 7.09 Å, c = 7.76 Å
Ratio:
a:b:c = 0.611 : 1 : 1.094
Unit Cell V:
0.00 ų (Calculated from Unit Cell)
Z:
2

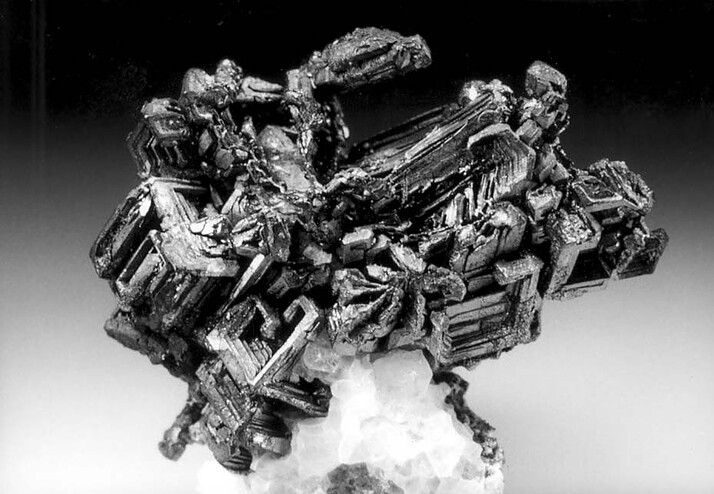

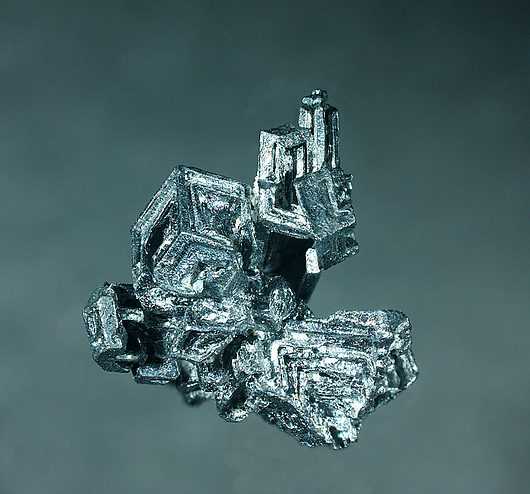

Morphology:
In skeletal pseudododecahedral crystals, commonly elongated in the direction of a pseudocubic or pseudo-octahedral edge, to 3 cm; also massive and in intergrowths with acanthite or naumannite.
Comment:
Space group P21/n. Originally assumed to be orthorhombic, with a = 4.33, b = 7.09, c = 7.76 A.
Crystal Structure
Load
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Show
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Display Options
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
View
CIF File Best | x | y | z | a | b | c
CIF File Best | x | y | z | a | b | c
Rotation
Stop | Start
Stop | Start
Labels
Console Off | On | Grey | Yellow
Console Off | On | Grey | Yellow
Data courtesy of the American Mineralogist Crystal Structure Database. Click on an AMCSD ID to view structure
| ID | Species | Reference | Link | Year | Locality | Pressure (GPa) | Temp (K) |
|---|---|---|---|---|---|---|---|
| 0019989 | Aguilarite | Bindi L, Pingitore N E (2013) On the symmetry and crystal structure of aguilarite, Ag4SeS Mineralogical Magazine 77 21-31 | 2013 | San Carlos mine, Guanajuato, Mexico | 0 | 293 |
CIF Raw Data - click here to close
X-Ray Powder Diffraction
Powder Diffraction Data:
| d-spacing | Intensity |
|---|---|
| 2.88 Å | (50) |
| 2.67 Å | (20) |
| 2.59 Å | (20) |
| 2.43 Å | (100) |
| 2.23 Å | (30) |
| 1.73 Å | (30) |
| 1.48 Å | (40) |
Comments:
Guanajuato, Mexico (ICDD 27-620).
Geological Environment
Paragenetic Mode(s):
| Paragenetic Mode | Earliest Age (Ga) |
|---|---|
| High-? alteration and/or metamorphism | |
| 33 : Minerals deposited by hydrothermal metal-rich fluids (see also [#12]) |
Geological Setting:
An uncommon, relatively low-temperature, mineral in hydrothermal deposits rich in silver and selenium, but manifestly deficient in sulfur.
Type Occurrence of Aguilarite
General Appearance of Type Material:
Skeletal pseudo-dodecahedrons. Often lengthened along one of the crystallographic axes or in the direction of a pseudo-octahedral axis. Crystals to 6 x 10 mm and groups to 15 mm.
Place of Conservation of Type Material:
No designated type material.
Associated Minerals at Type Locality:
Other Language Names for Aguilarite
Dutch:Aguilariet
French:Aguilarite
German:Aguilarit
Italian:Aguilarite
Latvian:Agvilarīts
Norwegian:Aguilaritt
Simplified Chinese:辉硒银矿
Spanish:Aguilarita
Relationship of Aguilarite to other Species
Common Associates
Associated Minerals Based on Photo Data:

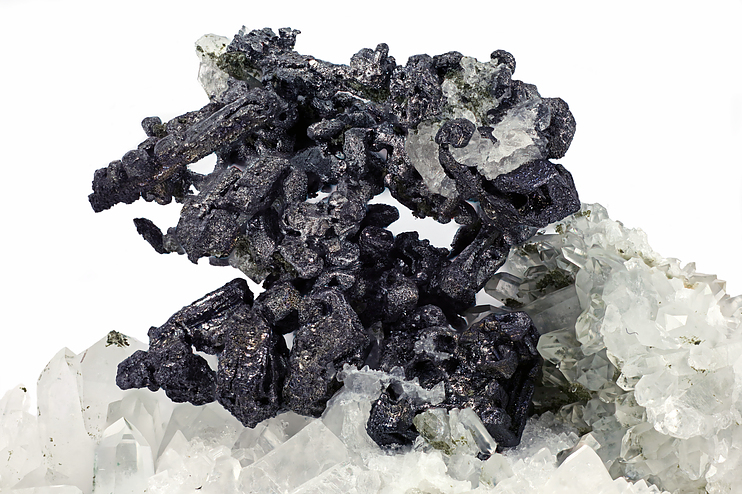

| 21 photos of Aguilarite associated with Quartz | SiO2 |
| 12 photos of Aguilarite associated with Electrum | (Au,Ag) |
| 12 photos of Aguilarite associated with Naumannite | Ag2Se |
| 7 photos of Aguilarite associated with Galena | PbS |
| 5 photos of Aguilarite associated with Pyrite | FeS2 |
| 5 photos of Aguilarite associated with Chalcopyrite | CuFeS2 |
| 4 photos of Aguilarite associated with Sphalerite | ZnS |
| 2 photos of Aguilarite associated with Native Gold | Au |
| 2 photos of Aguilarite associated with Stephanite | Ag5SbS4 |
| 2 photos of Aguilarite associated with Polybasite | [Ag6Sb2S7][Ag9CuS4] |
Related Minerals - Strunz-mindat Grouping
| 2.BA. | Makotoite | Ag12(Cu3Au)S8 |
| 2.BA. | Alburnite | Ag8GeTe2S4 |
| 2.BA. | Dzierżanowskite | CaCu2S2 |
| 2.BA. | Xuwenyuanite | Ag9Fe3+Te2S4 |
| 2.BA. | Orileyite | (Fe,Cu)2As |
| 2.BA. | Juxingite | Bi6Cu140Fe30S125 |
| 2.BA.05 | Djurleite | Cu31S16 |
| 2.BA.05 | Geerite | Cu8S5 |
| 2.BA.05 | Roxbyite | Cu58S32 |
| 2.BA.05 | Chalcocite | Cu2S |
| 2.BA.10 | Digenite | Cu9S5 |
| 2.BA.10 | Anilite | Cu7S4 |
| 2.BA.15 | Bornite | Cu5FeS4 |
| 2.BA.20 | Bellidoite | Cu2Se |
| 2.BA.20 | Berzelianite | Cu2-xSe (x ≈ 0.12) |
| 2.BA.25 | Athabascaite | Cu5Se4 |
| 2.BA.25 | Umangite | Cu3Se2 |
| 2.BA.30 | Rickardite | Cu7Te5 |
| 2.BA.30 | Weissite | Cu2-xTe |
| 2.BA.35 | Acanthite | Ag2S |
| 2.BA.35 | Spryite | Ag8(As3+0.5As5+0.5)S6 |
| 2.BA.40d | UM2003-13-S:AgAuCu | Ag6AuCu2S5 |
| 2.BA.40 | Mckinstryite | Ag5-xCu3+xS4 |
| 2.BA.40 | Stromeyerite | AgCuS |
| 2.BA.42 | Honeaite | Au3TlTe2 |
| 2.BA.45 | Jalpaite | Ag3CuS2 |
| 2.BA.45 | Selenojalpaite | Ag3CuSe2 |
| 2.BA.45 | Kurilite | Ag8Te3Se |
| 2.BA.47 | Spiridonovite | (Cu1-xAgx)2Te |
| 2.BA.50 | Wuyanzhiite | Cu2S |
| 2.BA.50 | Eucairite | AgCuSe |
| 2.BA.52 | Argentite | Ag2S |
| 2.BA.55 | Naumannite | Ag2Se |
| 2.BA.60 | Chenguodaite | Ag9Fe3+Te2S4 |
| 2.BA.60 | Hessite | Ag2Te |
| 2.BA.60 | Cervelleite | Ag4TeS |
| 2.BA.65 | Henryite | (Cu,Ag)3+xTe2 , with x ~ 0.40 |
| 2.BA.65 | Stützite | Ag5-xTe3, x = 0.24-0.36 |
| 2.BA.70 | Argyrodite | Ag8GeS6 |
| 2.BA.70 | Putzite | (Cu4.7Ag3.3)GeS6 |
| 2.BA.70 | Canfieldite | Ag8SnS6 |
| 2.BA.75 | Fischesserite | Ag3AuSe2 |
| 2.BA.75 | Uytenbogaardtite | Ag3AuS2 |
| 2.BA.75 | Penzhinite | (Ag,Cu)4Au(S,Se)4 |
| 2.BA.75 | Petrovskaite | AuAgS |
| 2.BA.75 | Petzite | Ag3AuTe2 |
| 2.BA.80 | Bezsmertnovite | (Au,Ag)4Cu(Te,Pb) |
| 2.BA.80 | Bilibinskite | PbCu2Au3Te2 |
| 2.BA.80 | Bogdanovite | (Au,Te,Pb)3(Cu,Fe) |
Other Information
Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.
Industrial Uses:
Minor silver ore
Internet Links for Aguilarite
mindat.org URL:
https://www.mindat.org/min-59.html
Please feel free to link to this page.
Please feel free to link to this page.
Search Engines:
External Links:
References for Aguilarite
Reference List:
Ramdohr, Paul (1969) The Ore Minerals and their Intergrowths. Pergamon Press, Oxford. 1174pp. doi:10.1016/c2013-0-10027-x
Main, J. V., Rodgers, K. A., Kobe, H. W., Woods, C. P. (1972) Aguilarite from the Camoola Reef, Maratoto
Valley, New Zealand. Mineralogical Magazine, 38 (300) 961-964 doi:10.1180/minmag.1972.038.300.07
Števko, Martin, Sejkora, Jiří, Dolníček, Zdeněk, Škácha, Pavel (2018) Selenium-Rich Ag–Au Mineralization at the Kremnica Au–Ag Epithermal Deposit, Slovak Republic. Minerals, 8 (12) 572 doi:10.3390/min8120572
Kullerud, Kåre, Kotková, Jana, Šrein, Vladimír, Drábek, Milan, Škoda, Radek (2018) Solid solutions in the system acanthite (Ag2S)–naumannite (Ag2Se) and the relationships between Ag-sulfoselenides and Se-bearing polybasite from the Kongsberg silver district, Norway, with implications for sulfur–selenium fractionation. Contributions to Mineralogy and Petrology, 173 (9) 71 doi:10.1007/s00410-018-1500-3
