Butlerite
A valid IMA mineral species
This page is currently not sponsored. Click here to sponsor this page.

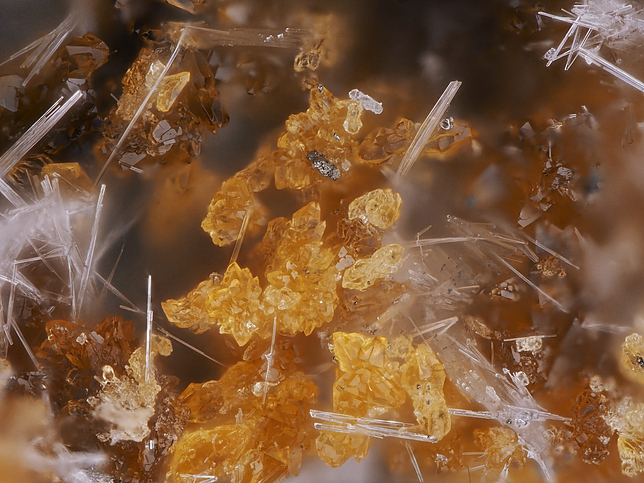

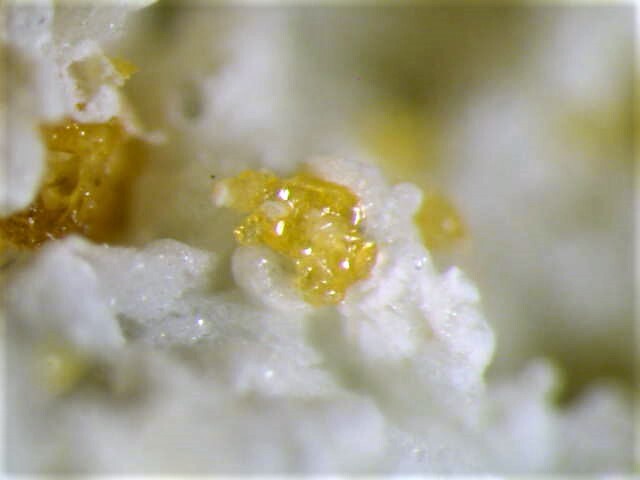

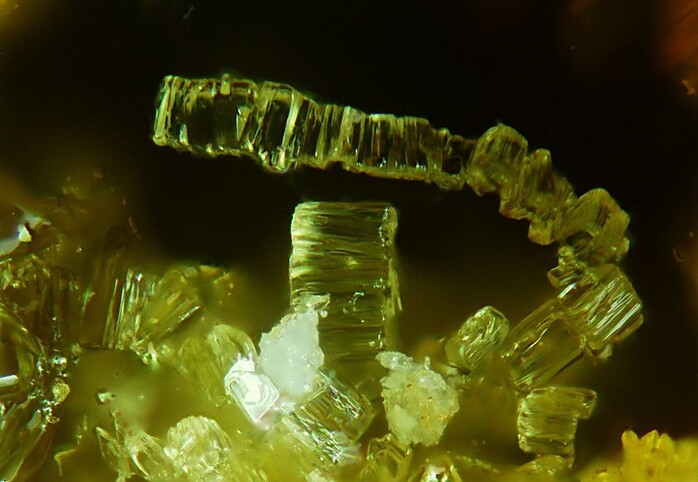

About Butlerite
Gurdon M. Butler
Formula:
Fe3+(SO4)(OH) · 2H2O
Colour:
Dark orange; light yellow-orange in transmitted light.
Lustre:
Vitreous
Hardness:
2œ
Specific Gravity:
2.548
Crystal System:
Monoclinic
Name:
Named by Carl Lausen in 1928 in honor of Gurdon Montague "Monty" Butler (March 26, 1881 Lake Geneva, Wisconsin, USA - February 21, 1961 California, USA), mining geologist and professor, University of Arizona. The Butler Mountains of Camino del Diablo, Arizona were also named for Gurdon Montague Butler.
Type Locality:
Polymorph of:
Unique Identifiers
Mindat ID:
810
Long-form identifier:
mindat:1:1:810:5
IMA Classification of Butlerite
Approved, 'Grandfathered' (first described prior to 1959)
Classification of Butlerite
7.DC.10
7 : SULFATES (selenates, tellurates, chromates, molybdates, wolframates)
D : Sulfates (selenates, etc.) with additional anions, with H2O
C : With only medium-sized cations; chains of edge-sharing octahedra
7 : SULFATES (selenates, tellurates, chromates, molybdates, wolframates)
D : Sulfates (selenates, etc.) with additional anions, with H2O
C : With only medium-sized cations; chains of edge-sharing octahedra
31.9.1.1
31 : HYDRATED SULFATES CONTAINING HYDROXYL OR HALOGEN
9 : (AB)(XO4)Zq·xH2O
31 : HYDRATED SULFATES CONTAINING HYDROXYL OR HALOGEN
9 : (AB)(XO4)Zq·xH2O
25.10.15
25 : Sulphates
10 : Sulphates of Fe alone
25 : Sulphates
10 : Sulphates of Fe alone
Mineral Symbols
As of 2021 there are now IMAâCNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.
| Symbol | Source | Reference |
|---|---|---|
| Btl | IMAâCNMNC | Warr, L.N. (2021). IMAâCNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43 |
Physical Properties of Butlerite
Vitreous
Transparency:
Translucent
Colour:
Dark orange; light yellow-orange in transmitted light.
Streak:
Pale yellow
Hardness:
2œ on Mohs scale
Cleavage:
Perfect
On {100}, perfect. another cleavage direction (pinacoidal) is imperfect.
On {100}, perfect. another cleavage direction (pinacoidal) is imperfect.
Density:
2.548 g/cm3 (Measured) Â Â Â 2.53 g/cm3 (Calculated)
Optical Data of Butlerite
Type:
Biaxial (+/-)
RI values:
nα = 1.593 - 1.604 nÎČ = 1.665 - 1.674 nÎł = 1.731 - 1.741
Birefringence:
moderately high
Max. Birefringence:
ÎŽ = 0.137 - 0.138
Based on recorded range of RI values above.
Based on recorded range of RI values above.
Interference Colours:
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 ”m thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 ”m thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
Surface Relief:
Moderate
Dispersion:
r < v weak
Optical Extinction:
Z = b; X ⧠c = â18°.
Pleochroism:
Visible
Comments:
X = Colourless; Y = Faint yellow; Z = Light yellow.
Comments:
2V large.
Chemistry of Butlerite
Mindat Formula:
Fe3+(SO4)(OH) · 2H2O
Element Weights:
Elements listed:
Crystallography of Butlerite
Crystal System:
Monoclinic
Class (H-M):
2/m - Prismatic
Space Group:
P21/m
Setting:
P21/m
Cell Parameters:
a = 6.51 â«, b = 7.37 â«, c = 5.85 â«
ÎČ = 108.87°
ÎČ = 108.87°
Ratio:
a:b:c = 0.883 : 1 : 0.794
Unit Cell V:
265.59 Ă
Âł (Calculated from Unit Cell)
Z:
2
Morphology:
Crystals commonly tabular {001} or {100} with a propensity for elongation [010]; also octahedral (anthropogenic).
Twinning:
Very common on {105}.
Crystal Structure
Load
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Show
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Display Options
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
View
CIF File   Best | x | y | z | a | b | c
CIF File   Best | x | y | z | a | b | c
Rotation
Stop | Start
Stop | Start
Labels
Console Off | On | Grey | Yellow
Console Off | On | Grey | Yellow
Data courtesy of the American Mineralogist Crystal Structure Database. Click on an AMCSD ID to view structure
| ID | Species | Reference | Link | Year | Locality | Pressure (GPa) | Temp (K) |
|---|---|---|---|---|---|---|---|
| 0000232 | Butlerite | Fanfani L, Nunzi A, Zanazzi P F (1971) The crystal structure of butlerite American Mineralogist 56 751-757 |  | 1971 | 0 | 293 |
CIF Raw Data - click here to close
Epitaxial Relationships of Butlerite
Epitaxial Minerals:
| Parabutlerite | Fe3+(SO4)(OH) · 2H2O |
Epitaxy Comments:
Oriented growths.
X-Ray Powder Diffraction
Powder Diffraction Data:
| d-spacing | Intensity |
|---|---|
| 4.97 Ă | (FF) |
| 3.15 Ă | (F) |
| 3.59 Ă | (mF) |
| 3.05 Ă | (mF) |
| 3.22 Ă | (mf) |
| 2.48 Ă | (mf) |
| 6.17 Ă | (ff) |
Comments:
United Verde mine, Arizona, USA. Data from Cesbron (1964).
Geological Environment
Paragenetic Mode(s):
| Paragenetic Mode | Earliest Age (Ga) |
|---|---|
| Stage 7: Great Oxidation Event | <2.4 |
| 45a : [Sulfates, arsenates, selenates, antimonates] | |
| 47a : [Near-surface hydration of prior minerals] | |
| 47b : [Sulfates and sulfites] | |
| Stage 10b: Anthropogenic minerals | <10 Ka |
| 55 : Anthropogenic mine minerals |
Geological Setting:
Oxidation of pyritic ore; may be formed under pseudo-fumarolic
conditions from mine fires.
conditions from mine fires.
Type Occurrence of Butlerite
General Appearance of Type Material:
Coatings on rock and as cement, binding them together. Where the coatings are thin, individual crystals to 1 mm.
Place of Conservation of Type Material:
University of Arizona Mineral Museum, Tucson, Arizona, M52; Harvard University, Cambridge, Massachusetts, 90539; National Museum of Natural History, Washington, D.C., USA, 95953.
Geological Setting of Type Material:
Oxidation of pyrite in a mine fire with reactions to fire fighting techniques (water, steam, CO2).
Associated Minerals at Type Locality:
Other Language Names for Butlerite
Common Associates
Associated Minerals Based on Photo Data:
| 21 photos of Butlerite associated with Copiapite | Fe2+Fe3+4(SO4)6(OH)2 · 20H2O |
| 19 photos of Butlerite associated with Pyrite | FeS2 |
| 9 photos of Butlerite associated with Parabutlerite | Fe3+(SO4)(OH) · 2H2O |
| 6 photos of Butlerite associated with Botryogen | MgFe3+(SO4)2(OH) · 7H2O |
| 2 photos of Butlerite associated with Fibroferrite | Fe3+(SO4)(OH) · 5H2O |
| 2 photos of Butlerite associated with Unnamed (Pb-Cu Oxide) | PbCu2O2 |
| 2 photos of Butlerite associated with Aragonite | CaCO3 |
| 1 photo of Butlerite associated with Voltaite | K2Fe2+5Fe3+3Al(SO4)12 · 18H2O |
| 1 photo of Butlerite associated with Unnamed (Fe Sulphate Hydroxide) | Fe(SO4)(OH) |
| 1 photo of Butlerite associated with Aubertite | CuAl(SO4)2Cl · 14H2O |
Related Minerals - Strunz-mindat Grouping
| 7.DC.05 | Meta-aluminite | Al2(SO4)(OH)4 · 5H2O |
| 7.DC.05 | Aluminite | Al2(SO4)(OH)4 · 7H2O |
| 7.DC.10 | Parabutlerite | Fe3+(SO4)(OH) · 2H2O |
| 7.DC.15 | Fibroferrite | Fe3+(SO4)(OH) · 5H2O |
| 7.DC.20 | Xitieshanite | Fe3+(SO4)Cl · 6H2O |
| 7.DC.25 | Zincobotryogen | (Zn,Mg,Mn2+)Fe3+(SO4)2(OH) · 7H2O |
| 7.DC.25 | Botryogen | MgFe3+(SO4)2(OH) · 7H2O |
| 7.DC.30 | Chaidamuite | ZnFe3+(SO4)2(OH) · 4H2O |
| 7.DC.30 | Guildite | CuFe3+(SO4)2(OH) · 4H2O |
| 7.DC.40 | Pauladamsite | Cu4(SeO3)(SO4)(OH)4 · 2H2O |
| 7.DC.45 | Riotintoite | Al(SO4)(OH) · 3H2O |
| 7.DC.50 | Thorneite | Pb6(Te6+2O10)(CO3)Cl2(H2O) |
| 7.DC.55 | Vendidaite | Al2(SO4)(OH)3Cl · 6H2O |
Other Information
Notes:
Soluble in water.
Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.
Internet Links for Butlerite
mindat.org URL:
https://www.mindat.org/min-810.html
Please feel free to link to this page.
